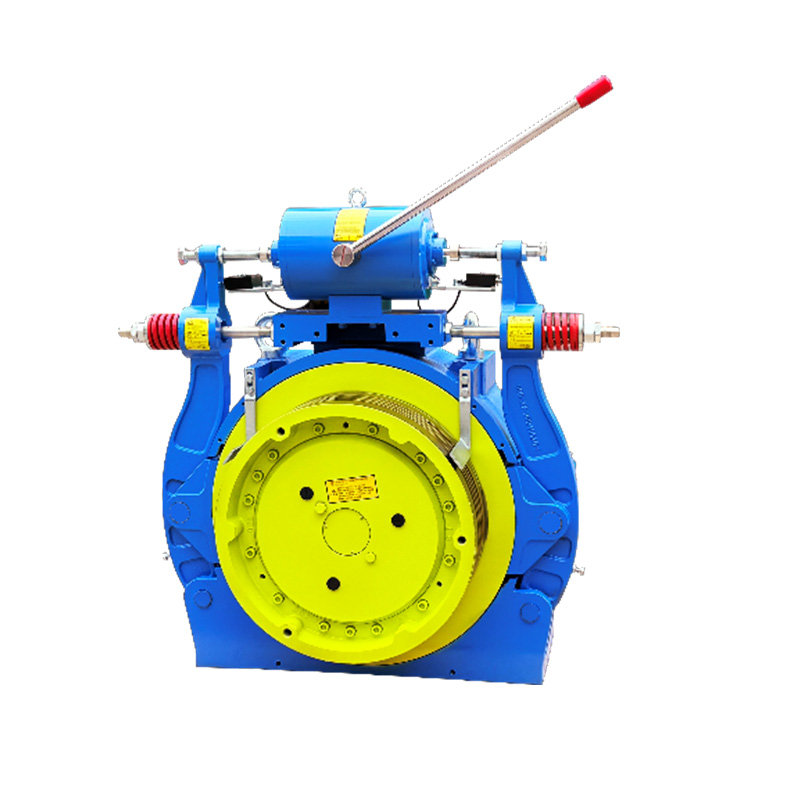

WTY1/SWTY1(520mm varaq) SERISI MASHINLARI
| Capacity | 800 kg-2000 kg |
| Arqon bilan bog'lash | 2:1|1:1 |
| Pastki qism | U |
| Oyoq yostig'ining tekisligi | <0,5 mm |
| Protection Rating | IP40 |
| Izolyatsiya klassi | F |
| polyaklar | 32 |
| Ish aylanishi | S5-40% |
| Dvigatel nominal kuchlanishi | AC380V |
| Tormoz | Drum |
| Picking/Holding Voltage | AC110V/DC110V |
DC tormozi uchun to'liq to'lqinli rektifikatsiya quvvat manbai
WTY1&SWTY1(520 mm SHEAVE) SERISI - BIR O'RMA (tashqi ROTOR)
| Model | Imkoniyat kg |
Lift tezligi Xonim |
Nominal chiqish kW |
Rated current A |
Nominal tezlik rpm |
Chastotasi Hz |
Shlangi diametri mm |
Moment Nm |
Arqonlar | Groove dist mm |
Kesish Burchak |
Groove Angle | Arqon bilan bog'lash |
Shaft Load kg |
Tutqich G'ildirak | Masofadan chiqarish | Inertsiya kg m^2 |
Weight kg |
| SWTY1-800-100(520) | 800 | 1.0 | 5.2 | 15 | 37 | 9.8 | 520 | 1359 | 6-13 | 20 | b=95° | g=30° | 1:1 | 5500 | Y | Y | 11.5 | 660 |
| SWTY1-800-150(520) | 1.5 | 7.8 | 20 | 55 | 14.7 | |||||||||||||
| SWTY1-800-160(520) | 1.6 | 8.4 | 20 | 59 | 15.7 | |||||||||||||
| SWTY1-800-175(520) | 1.75 | 9.1 | 20 | 64 | 17.1 | |||||||||||||
| SWTY1-800-200(520) | 2.0 | 10.5 | 27 | 73 | 19.6 | |||||||||||||
| SWTY1-800-250(520) | 2.5 | 13.1 | 30 | 92 | 24.5 | |||||||||||||
| SWTY1-1000-100(520) | 1000 | 1.0 | 6.1 | 18 | 37 | 9.8 | 520 | 1585 | 6-13 | 20 | b=95° | g=30° | 1:1 | 5500 | Y | N | 12 | 730 |
| SWTY1-1000-150(520) | 1.5 | 9.8 | 28 | 55 | 14.7 | |||||||||||||
| SWTY1-1000-160(520) | 1.6 | 10.5 | 28 | 59 | 15.7 | |||||||||||||
| SWTY1-1000-175(520) | 1.75 | 11.4 | 28 | 64 | 17.1 | |||||||||||||
| SWTY1-1000-200(520) | 2.0 | 13.1 | 30 | 73 | 19.6 | |||||||||||||
| SWTYl-1000-250 (520) | 2.5 | 16.3 | 36 | 92 | 24.5 | 1699 | ||||||||||||
| ★SWTY1-1150-150(520) | 1150 | 1.5 | 9.8 | 28 | 55 | 14.7 | 520 | 1700 | 6-13 | 20 | b=95° | g=30° | 1:1 | 5500 | Y | N | 12 | 730 |
| ★SWTY1-1150-160(520) | 1.6 | 10.5 | 28 | 59 | 15.7 | |||||||||||||
| ★SWTY1-1150-175(520) | 1.8 | 11.4 | 28 | 64 | 17.1 | |||||||||||||
| ★SWTY1-1150-200(520) | 2.0 | 13.1 | 30 | 73 | 19.6 | |||||||||||||
| ★SWTY1-1150-250(520) | 2.5 | 16.3 | 36 | 92 | 24.5 | |||||||||||||
| WTY1-1600-100(520) | 1600 | 1.0 | 10.6 | 27 | 73 | 19.6 | 520 | 1384 | 6-13 | 20 | b=95° | g=30° | 2:1 | 5500 | Y | Y | 11.5 | 690 |
| WTY1-1600-150(520) | 1.5 | 16.0 | 42 | 110 | 29.4 | |||||||||||||
| WTY1-1600-160(520) | 1.6 | 17.0 | 42 | l18 | 31.3 | |||||||||||||
| WTY1-1600-175(520) | 1.75 | 18.6 | 42 | 129 | 34.3 | |||||||||||||
| WTY1-1600-200(520) | 2.0 | 21.3 | 47 | 147 | 39.2 | |||||||||||||
| WTY1-2000-100(520) | 2000 | 1.0 | 13.3 | 33 | 73 | 9.6 | 520 | 1729 | 6-13 | 20 | b=95° | g=30° | 2:1 | 5500 | Y | N | 12 | 730 |
| WTY1-2000-150(520) | 1.5 | 20.0 | 48 | l10 | 29.4 | |||||||||||||
| WTY1-2000-160 (520) | 1.6 | 21.3 | 48 | l18 | 31.3 | |||||||||||||
| WTY1-2000-175 (520) | 1.75 | 23.3 | 48 | 129 | 34.3 | |||||||||||||
| WTY1-2000-200(520) | 2.0 | 23.6 | 55 | 147 | 39.2 |
Notes:
1.With"★"mark,the balance ratio is 0.48~0.5.
2.Tormoz AC110V va DC110V ixtiyoriy, boshqa tormoz kuchlanishi muhandislarga murojaat qiling.
3.AC brake is equipped with controller, step-down transformer is not required. DC brake requires step-down transformer in cabinet to guarantee holding voltage is 50% of picking voltage.
