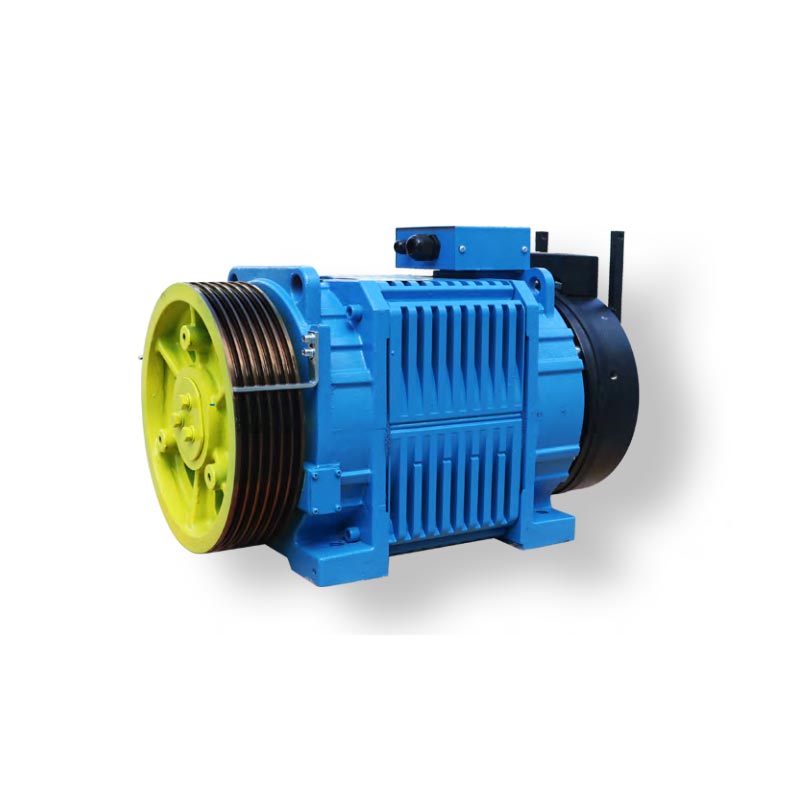

WR seriyali mashinalar
| Imkoniyat | 1150-1350 kg |
| O'rash | Yagona o'rash |
| Rotor | Ichki rotor |
| Pastki qism | U |
| Oyoq yostig'ining tekisligi | < 0,5 mm |
| Himoya reytingi | IP40 |
| Izolyatsiya klassi | F |
| polyaklar | 20 |
| Ish aylanishi | S5-40% |
| Dvigatel nominal kuchlanishi | AC380V |
| Tormoz | Plita |
| Tanlash/ushlab turish kuchlanishi | DC110V |
Tormoz uchun to'liq to'lqinli rektifikatsion quvvat manbai
| Model | Imkoniyat kg |
Lift tezligi Xonim |
Nominal chiqish KVt |
Nominal oqim A |
Nominal tezlik rpm |
Chastotasi Hz |
Shlangi diametri mm |
Moment Nm |
Arqonlar | Groove dist. mm |
Kesish burchagi | Chuqur burchak | Arqon bilan bog'lash | Mil yuki kg |
Tutqich g'ildiragi | Masofadan chiqarish | Inertsiya kg m^2 |
Og'irligi kg |
| WR-1150-100-E | 1150 | 1.0 | 7.0 | 19.0 | 119 | 19.9 | 320 | 561 | 8-P8 | 12 | b=90° | g=30° | 2:1 | 3500 | N | Y/N | 0.70 | 310 |
| WR-1150-150-E | 1.5 | 10.5 | 28.5 | 179 | 29.8 | |||||||||||||
| WR-1150-160-E | 1.6 | 11.2 | 191 | 31.8 | ||||||||||||||
| WR-1150-175-E | 1.75 | 12.3 | 209 | 34.8 | ||||||||||||||
| WR-1150-200-E | 2.0 | 14.0 | 32.0 | 239 | 39.8 | |||||||||||||
| ★WR-1250-100 | 1250 | 1.0 | 7.2 | 21.0 | 119 | 19.9 | 320 | 576 | 9-P8 | 12 | b=90° | g=30° | 2:1 | 3500 | N | Y/N | 0.76 | 400 |
| WR-1250-150 | 1.5 | 12.5 | 33.0 | 179 | 29.8 | 665 | ||||||||||||
| WR-1250-160 | 1.6 | 13.3 | 191 | 31.8 | ||||||||||||||
| WR-1250-175 | 1.75 | 14.6 | 209 | 34.8 | ||||||||||||||
| ★WR-1250-200 | 2.0 | 15.9 | 38.0 | 239 | 39.8 | 634 | ||||||||||||
| ★WR-1350-100 | 1350 | 1.0 | 8.6 | 23.0 | 119 | 19.9 | 320 | 685 | 9-P8 | 12 | b=90° | g=30° | 2:1 | 3500 | N | YIN | 0.76 | 400 |
| WR-1350-150 | 1.5 | 13.5 | 37.0 | 179 | 29.8 | 718 | ||||||||||||
| WR-1350-160 | 1.6 | 14.4 | 191 | 31.8 | ||||||||||||||
| WR-1350-175 | 1.75 | 15.7 | 209 | 34.8 | ||||||||||||||
| ★WR-1350-200 | 2.0 | 17.1 | 40.0 | 239 | 39.8 | 685 |
Eslatmalar: 1. Ushbu seriyaning standart dizayni faqat 180 ° o'rash burchagi uchun amal qiladi.
2. Bilan★belgisi, balans nisbati 0,45 ~ 0,5 ni tashkil qiladi.
3. Regen drive ilovasi, iltimos, biz bilan maslahatlashing, so'ngra eslatmalar bilan buyurtma bering.
